| Make |
Rsf |
| Model |
Modular 11 |
| Description |

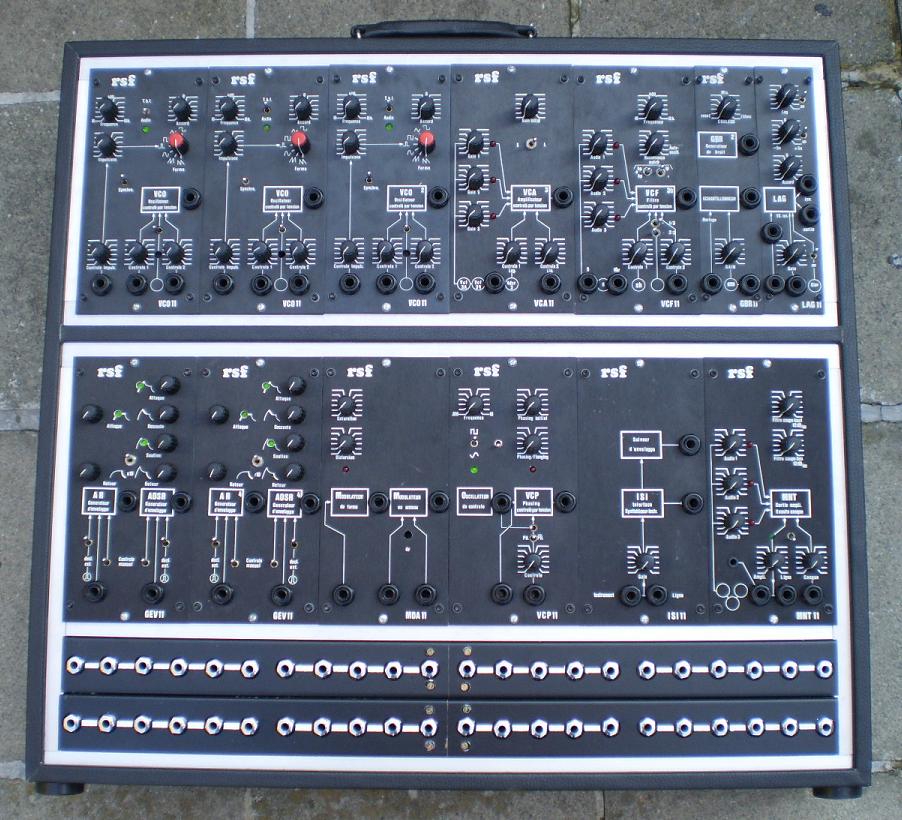

Very rare RSF Modular 11. Built from 1976 to 1978 by Ruben and Serge Fernandez in Toulouse, France. They are mostly known for the Kobol Expanders,and the uber rare Polykobol synthesizer. RSF Modular 11 modules are very hard to find, as aprox. 300 modules maximum have been built from 1976 to 1978. Olivier Grall from France is a big fan of the RSF instruments and also owns Modular 11. This system is in very good cosmetic condition. Contains: 3 VCO's, 1 VCA, 1 Filter, 1 Noise/S&H, 1 Lag Processor, 2 Envelopes, 1 RingMod, 1 Phaser, 1 Envelope Follower/Interface, 1 Mixer, 1 Power module (integrated in the back panel).
***The modules have been tested and this is the result:
VCO1 is not working anymore, it worked but it died shortly after.

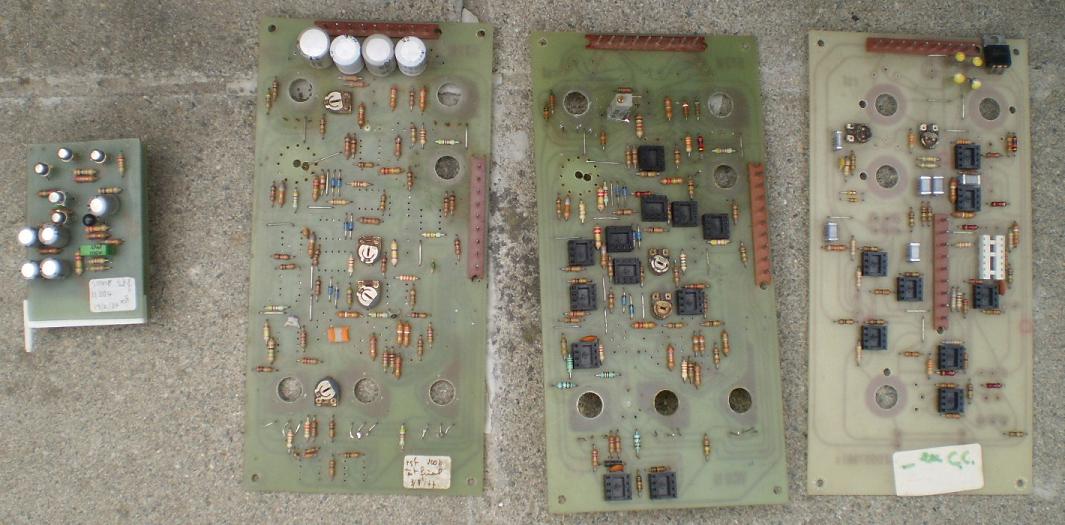

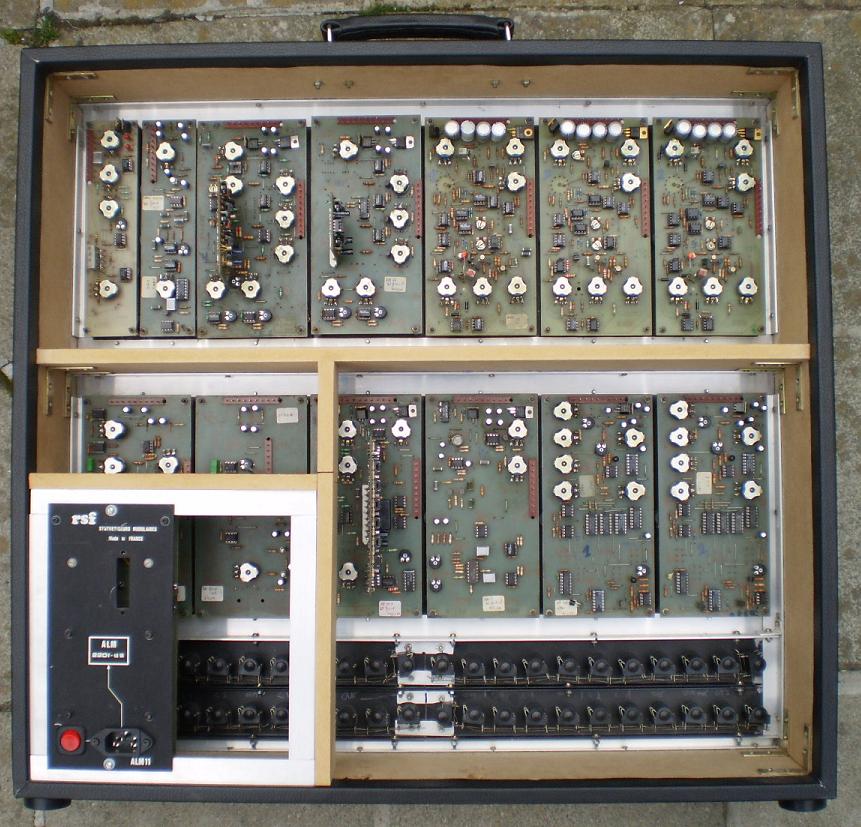

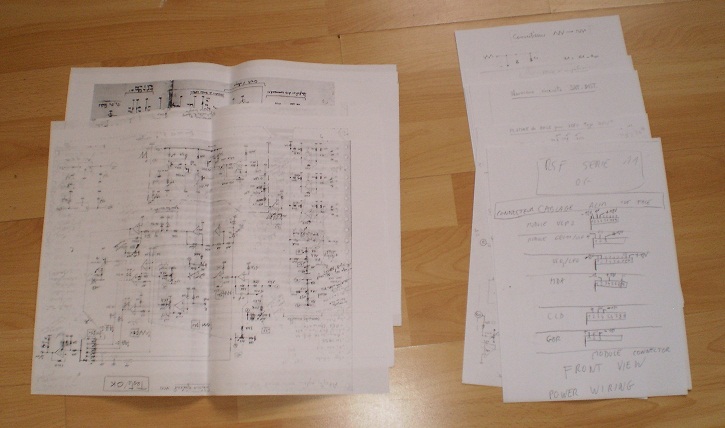

The rest of the modules are in working order but need attention, soldering points need to be refreshed, as sometimes it's functional and sometimes not. Some inputs and outputs need to be wired. There are also lots of papers (A3 format) with schematics and description on functions, how to wire each module for power. The system has multiples divided into 4x6 and 4x5. Extra are 2 VCO pcb's and a Phaser model 12 pcb, and a sub-module for the VCF. Note that the VCF's, VCA's and VCP's use these sub-modules - without these you have a non-functional module. New pictures have been added. System requires 220V. |
|
| Age |
n/a |
| Weight |
18 kg |
| Condition |
Very good |
| Location |
Belgium |
| Vat |
Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc. |
| Quantity |
1 item is available from the owner |
| Options |
User manual : No |
| |
Service manual : Yes |
| |
First owner : No |
| |
Original boxes : No |
| Plug type |
Europe standard plug |
| Voltage type |
Internal 220-240V power supply |
| Status |
Item is still available |
| Sale type |
The item is on the auction rooms |
| Ending on |
15/04/2012 |
| Category |
Synthesizer (Modular) |
| Serial number |
1 |
| Sphere reference |
# 9837 |
| Statistics |
Created on : 15/04/2012 |
|
Changed on : 15/04/2012 |
| |
Published on : 15/04/2012 |
| |
Displayed : 1595 time(s) by members and guests |
| Safety |
All electrical items sold in VEMIA are deemed to be trade sales. No warranty of electrical safety is given or implied. Many items are vintage and would not pass current electrical safety standards. It is the responsibility of the buyer to ensure that items are safe to use in their future environment - if necessary by using the services of a professional. |
|
|
|
|
|
|
|
|
|
