Make |
Arp |
Model |

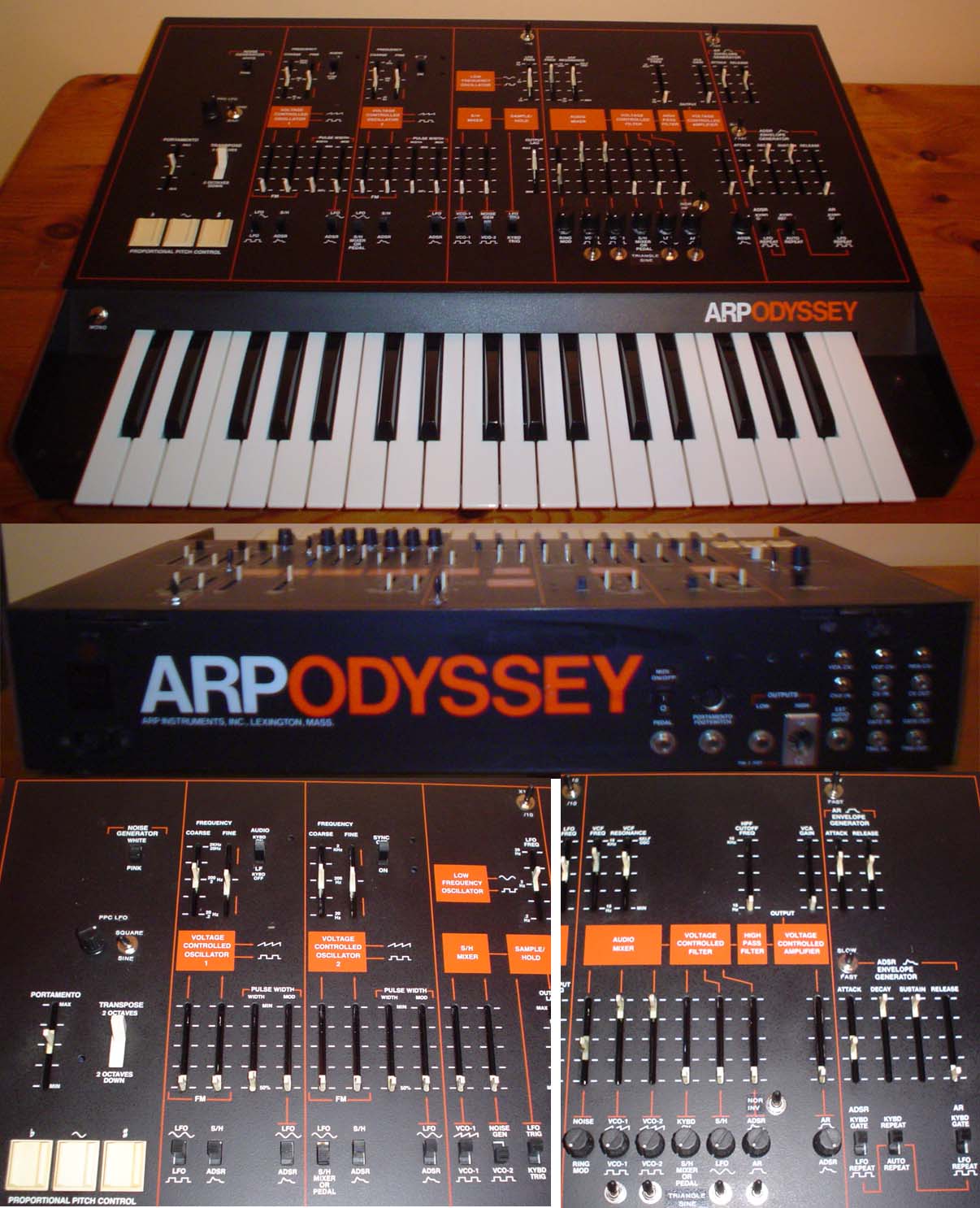

Ultra-Odyssey, Saint Eric's max mod |
Description |
All the amazing work on this Odyssey was done by ARP guru, Saint Eric in Holland. Over 1000 euros spent. Front panel very nice and clean. Side cheeks have marks and scratches, back has a couple of marks. Overall I'd say it was in nice condition, but not as nice as the EMS.
Heavily modified. Fully recapped. Sliders all pulled apart and relubricated. All key bushings done.
Mods:
Mono/ Duo 2 way switch for selecting monophonic/ duophonic modes.
Extra LFO for PPC, with switch for Square or Sine waveforms.
3 way Switch for LFO for extra slow/ normal / fast speed ranges.
3 way Switch for AR envelope for extra slow/ normal / fast speed ranges.
3 way Switch for ADSR envelope for extra slow/ normal / fast speed ranges.
7 new pots in mixer section:
Pot 1 ring mod... Slider 1 above pot 1 is for noise
Pot 2 VCO 1 square volume to mixer... Slider 2 above pot 2 is for VCO 1 Saw
Pot 3 VCO 2 square volume to mixer... Slider 3 above pot 3 is for VCO 2 Saw
Pot 4 S/H mixer or Pedal to VCF.. Slider above pot 4 is for Keyboard CV
Pot 5 LFO sine to VCF.. Slider above pot 5 is for S/H
Pot 6 AR to VCF.. Slider above pot 6 is for ADSR
Pot 7 ADSR to VCA.. Slider above pot 7 is for AR
The idea is instead of the switch, you get a pot so access to all functionality at the same time.. so for example you can mix 4 waveforms at the same time, the 2 saw waves on the sliders and the 2 square waves on the pots.
In addition Pots 2 and 3 have 3 way switches, so you can switch from Square / Triangle / Sine waveforms.
Switch for inverted/ normal ADSR to filter.
Also have midi installed on the back, Synhouse midi jack. Its on a switch so can be turned on or off (bypassed). Plus extra cv inputs on the back too:
resonance cv, vcf cv, vca and another one which i can't quite remember!
No slider caps, was going to get some tic tac tops from RS components, but didnt get round to it! |
|
Age |
n/a |
Weight |
n/a |
Condition |
Good |
Location |
Uk |
Vat |
Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc. |
Quantity |
1 item is available from the owner |
Options |
User manual : No |
|
Service manual : No |
|
First owner : No |
|
Original boxes : No |
Plug type |
No lead provided |
Voltage type |
Internal 220-240V power supply |
Status |
Item is still available |
Sale type |
The item is on the auction rooms |
Ending on |
09/11/2008 |
Category |
Synthesizer (monophonic) |
Serial number |
Unknown |
Sphere reference |
# 6470 |
Statistics |
Created on : 04/11/2008 |
|
Changed on : (Not updated) |
|
Published on : 04/11/2008 |
|
Displayed : 887 time(s) by members and guests |
