If any word is underlined, you can click on to get more detail. Click on the photo to enlarge it and see more photos if available.
| Make |
Synton |
| Model |
Syrinx |
| Description |
Serial No: 01357 BB

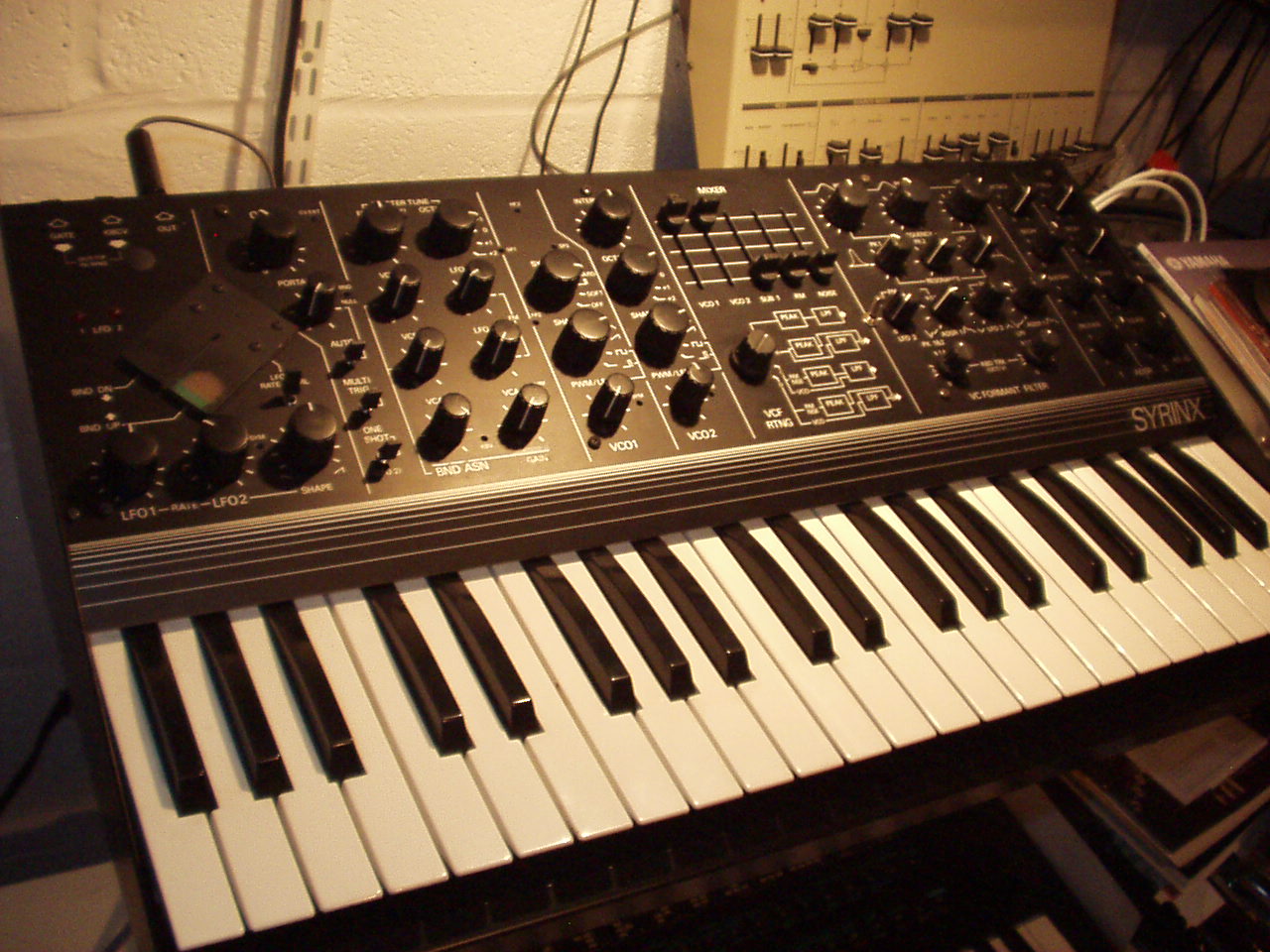

This black Syrinx was purchased second hand by me in 1985 from Chromatix of Ealing Broadway. I had it looked over at this time by Argent’s Keyboards technician. Since then it has not gigged, simply sat on a shelf with other bits and pieces, and been played for my own amusement. It has provided plenty of that. It comes with a manual and patch sheets, mains lead, CV and gate leads and a really solid Bulldog flight case. It has recently been serviced by Tony Allgood of Oakley Sound Systems and his service report and opinions about its internal history are included.* see below*. These seem to point to the fact that before my owning it, various modifications were made to the PCB. Anyway it still makes an extraordinary sound and for string/guitar sounds, the unique function–assignable pressure sensitive pad is just like the vibrato used on a fretboard.
FURTHER NOTES AND TONY ALLGOOD'S REPORT:-
Any modifications were made before my 1985 purchase. I have never had any problems with it other than old age taking its toll on the recently replaced pots mentioned below. In Tony Allgood’s extremely thorough and sympathetic approach, we basically decided that since the original pot values are no longer produced with a shank to fit the existing knobs, he would keep sets of pot knobs matching, by the work detailed below. We both agreed that as it was not a virgin Syrinx in its original wrapping paper, any mods or their subsequent removal were all just part of the history of this wonderful instrument.
Transcript of Service report from Tony Allgood at Oakley Sound Systems 16/11/05
Replace broken resonant filter cut off pot with filter scale pot. Replace now missing scale pot with with new Radiohm pot from OSCar. Cut down shaft to size and fit generic 1/4 inch knob. Replace other filter scale knob with similar style generic knob to match.
Remove worn out filter mode rotary switch. Replace with generic Lorlin switch. Cut down shaft and fit generic 6mm knob to suit.
Replace non factory toggle switch that had been fitted to select filter moduation source with new one. Tidy up wiring to this switch.
Remove toggle that appears to connect CV and pitch bend outputs together erroneously. Tidy up mounting hole and plug with suitable filler cap.
Tidy PCB modifications. These mods have been added at some point after it left the factory. There is considerable history here. I am not sure what was added and what use the top left hand toggle was. Some other board had been fitted beneath the CV/ Gate sockets, but had been removed.
Many of the mods were messy and there is some sign of past severe overheating around the CV/ gate mod.
Replace old and worn sockets with new Rean Parts.
Some pots were cleaned with De-Oxit. Other pots still exhibit some signs of wear and these will in time need replacing.
Cost of carriage would be buyer’s responsibility.
|
|
| Age |
n/a |
| Weight |
n/a |
| Condition |
Good |
| Location |
Uk |
| Vat |
Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc. |
| Quantity |
1 item is available from the owner |
| Options |
User manual : Yes |
| |
Service manual : No |
| |
First owner : No |
| |
Original boxes : No |
| Plug type |
United Kingdom standard plug |
| Voltage type |
Internal 220-240V power supply |
| Status |
Item has been sold or not sold in a previous auction |
| Sale type |
The item is on the auction rooms |
| Ending on |
18/03/2006 |
| Category |
|
| Serial number |
01357 BB |
| Sphere reference |
# 4959 |
| Statistics |
Created on : 11/03/2006 |
|
Changed on : 11/03/2006 |
| |
Published on : 11/03/2006 |
| |
Displayed : 3185 time(s) by members and guests |
| Safety |
All electrical items sold in VEMIA are deemed to be trade sales. No warranty of electrical safety is given or implied. Many items are vintage and would not pass current electrical safety standards. It is the responsibility of the buyer to ensure that items are safe to use in their future environment - if necessary by using the services of a professional. |
|
|
|
|
|
|
|
|
|
Prices and conditions  |
 top |
|
|
|
The following section gives you the prices as well as shipment and payment conditions associated with the item. Payment is always requested in GBP. Converted price is shown for information and converted with Sphere standard currency rate.
Shipment and Payment links gives you access to an extended description of our rating :
| Start price |
1080 GBP |
| Converted price (1) |
1080 GBP |
| Shipment |
International or local shipment to pay |
| Packing costs |
n/a |
| Payment |
Full pre payment needed |
| Auction bid step |
20 GBP |
| Auction highest bid |
1271 GBP |
| Converted highest bid |
1271 GBP |
| Leader or winner |
carax |
| (1) Currency conversion |
Note that conversion rates were last adjusted on 5th October 2022 at 10:56 CET. They are there to give you a rough guide to the bid price in your currency. Please check for a more up-to-date conversion at http://www.x-rates.com/calculator.html. The bid price will be the actual price in pounds (GBP) at the moment the auction closes. This will be roughly converted to your currency for your information.
For technical reasons, we are unable to update the conversion from GBP to Euro during the auction, although it has changed by well over 10%. If you are in the euro zone please check the current rate at http://www.x-rates.com/calculator.html
Payments from UK and non-Euro currency regions must always be in GBP. Payments to and from Euro currency regions can be in Euros via our French bank.The applicable Euro amount will be the exact amount specified on your invoice or credit note. For more info please see the FAQ about exchange rates. |
|
|
|
|
|
|
