| Make |
Roland |
| Model |
SH5 |
| Description |

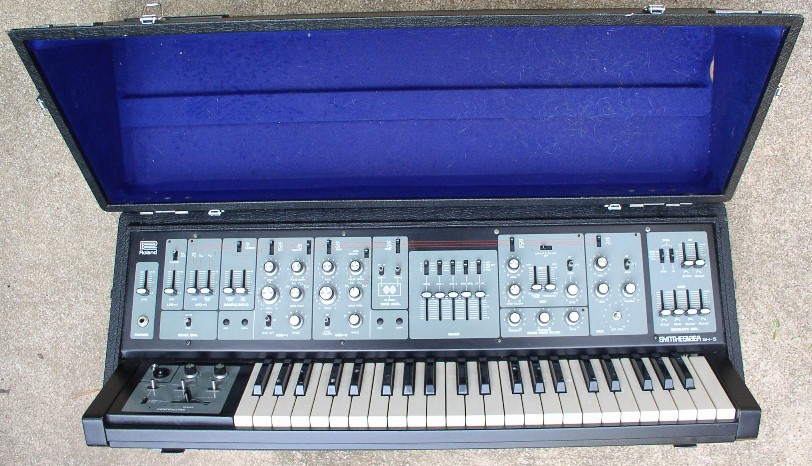

RARE ROLAND SH-5 ANALOG SYNTHESIZER
The SH-5 is a very advanced and classic monophonic synthesizer rivalled mainly by its successor, the SH-7.
The SH-5 has just about two of everything. There are two analog VCOs with triangle, ramp, square and pulse waveforms. The VCOs can be modulated by the LFOs or the ADSR envelope gen. There are also white and pink noise generators. The two LFOs include controls for rate, ramp, reverse ramp, triangle, sine, square, delay, and a Sample+Hold feature. The two VCFs include a multi-mode hi-pass, low-pass, band-pass filter with cutoff, resonance, keybd, env sensitivity (AR, ADSR or preset) and modulation (ramp, sine, square, s+h) and a second band-pass filter. The two VCAs are AR and ADSR envelopes which can be triggered by the sample+hold, LFO #2 or an external audio trigger input.
Extra features include the standard SH-type Mixer section with 5 sliders to adjust noise, VCO1, VCO2,
ring mod and an external signal. Each of these 5 signals can be individually sent through the VCA, the
low-pass filter, the band-pass filter or both. The SH-5 even has stereo output with panning controls in the
VCA section and portamento! The Ring Modulator alone is enough to wet your appetite for this synth. A
serious analog mono-synth with lots of flexibility for creating serious electronic and dance music.
Technical Info
Polyphony - Monophonic
Oscillators - 2 VCOs range: 32' to 2', (triangle, ramp, square, pulse)
LFO - LFO 1: Rate, ramp, reverse ramp;
LFO 2: Rate, Delay, triangle, sine, square;
1 Sample+Hold: Sample time, delay time
VCF - VCF 1: hi-pass, low-pass, band-pass, cutoff, resonance, keybd, env sensitivity (AR, ADSR or preset) and modulation (ramp, sine, square, s+h);
VCF 2: Band-pass with cutoff, resonance and amount
VCA - 2 VCAs: AR and ADSR, triggered by sample+hold, LFO 2 or external trigger
Keyboard 44 keys
Control CV / Gate
Date 1976 - 1981
Controls -
Phones - Level
LFO1
Rate
Wave (saw/-saw)
LFO2
Rate
Delay time
Wave (tri/sine/square)
VCO1
LFO MOD
LFO select (-saw/sine/square/s&h)
Pitch
Pulse width
PWM select (manual/tri/square/-saw)
Waveform (tri/saw/square/PWM)
Range (32/16/8/4/2)
Sync (weak/strong)
VCO2
MOD
MOD select (-saw/sine/square/ADSR)
Pitch
Pulse width
PWM select (manual/ADSR)
Waveform (tri/saw/square/PWM)
Range (32/16/8/4/2)
KBD follow
RING Mod
X Select (Ext/VCO1)
Y Select (LFO -saw/sine/square/ Noise /VCO2)
SIGNAL Mixer
NOISE (to VCF/VCF+BPF/BPF/VCA)
VCO1 (to VCF/VCF+BPF/BPF/VCA)
VCO2 (to VCF/VCF+BPF/BPF/VCA)
RING (to VCF/VCF+BPF/BPF/VCA)
Ext (to VCF/VCF+BPF/BPF/VCA)
VCF
MOD (LFO -saw/sine/square/s&h)
KBD Follow
Mode (LP/HP/BP)
Cutoff
Resonance
EG Mod
EG Select (AR/ADSR/gate)
BPF
Frequency
Resonance
Level
VCA
MOD
MOD Select (LFO -saw/sine/square)
HOLD
EG Select (ADSR/AR/gate)
PANning
Output Level
ADSR
ATTACK
DECAY
SUSTAIN
RELEASE
AR
ATTACK
RELEASE
Trigger
AR (KBD/SH/LFO2/EXT)
ADSR (KBD/SH/LFO2/EXT)
Controller
Portamento
Tune
Transpose
Bender
Bender Range
Bender (VCO/VCF)
|
|
| Age |
24 year |
| Weight |
15 kg |
| Condition |
Very good |
| Location |
Usa |
| Vat |
Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc. |
| Quantity |
1 item is available from the owner |
| Options |
User manual : Yes |
| |
Service manual : Yes |
| |
First owner : No |
| |
Original boxes : No |
| Plug type |
Usa standard plug |
| Voltage type |
Internal 110 to 220-240V switchable |
| Status |
Item is still available |
| Sale type |
The item is for sale |
| Category |
|
| Serial number |
430315 |
| Sphere reference |
# 3181 |
| Statistics |
Created on : 04/11/2003 |
|
Changed on : 15/11/2003 |
| |
Published on : (Not published) |
| |
Displayed : 1360 time(s) by members and guests |
| Safety |
