This page displays the information available for the Bruel & Kjaer-2010 Heterodyne Analyzer osc/filter (Sphere item # 13249).
To enlarge the image, and access any other images, please click on it.

Detailed description, from the owner or the reseller, prices and supported shipment are displayed. Question and answers as well as reserving or bidding for the item are also available on dedicated pages by using the links on the menu.

Detail    top
If any word is underlined, you can click on to get more detail. Click on the photo to enlarge it and see more photos if available.
 Make Bruel & Kjaer
 Model 2010 Heterodyne Analyzer osc/filter

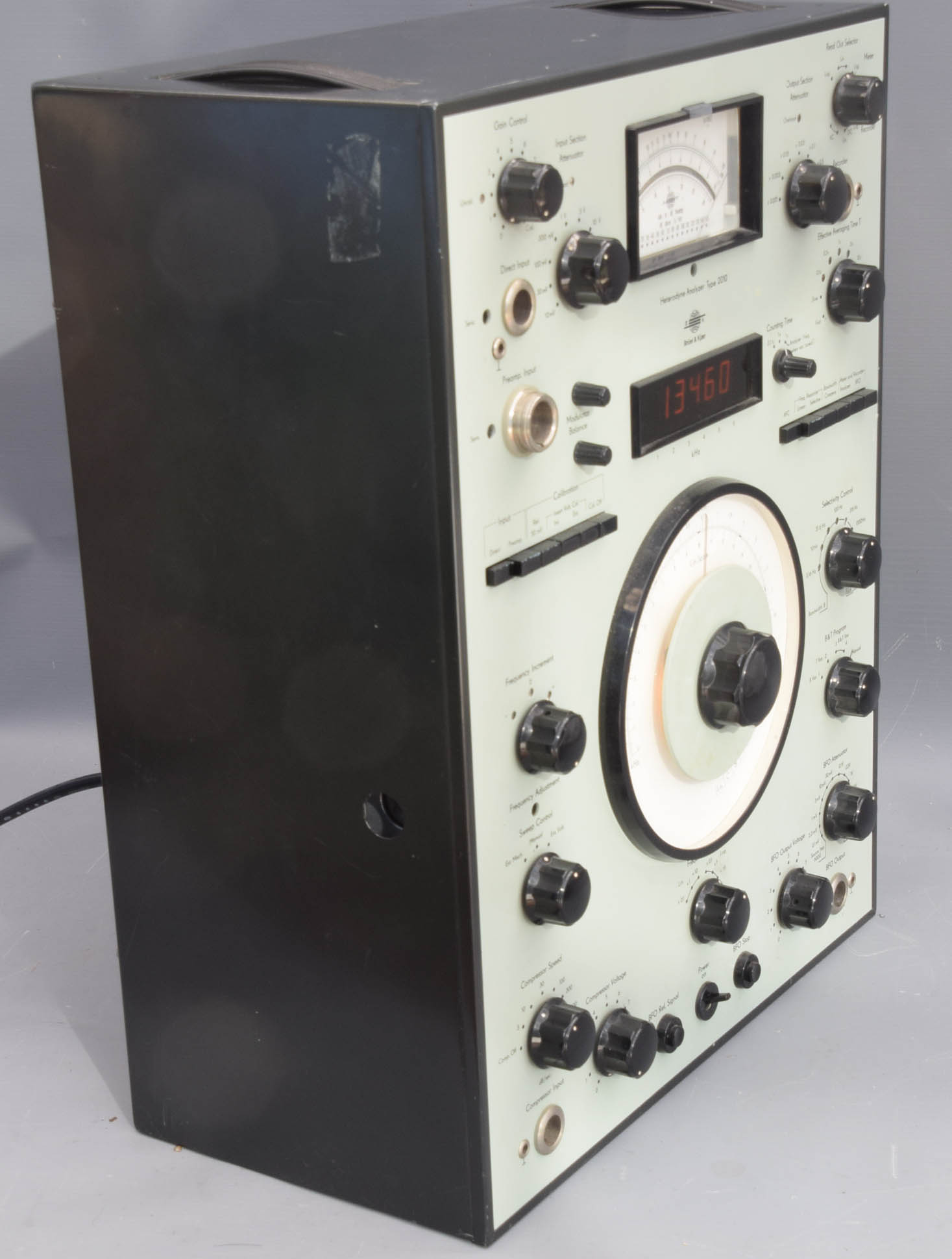

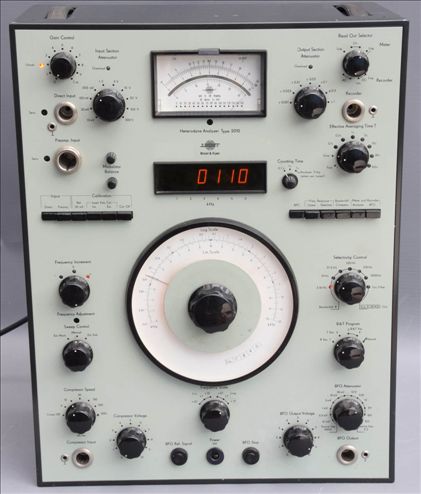

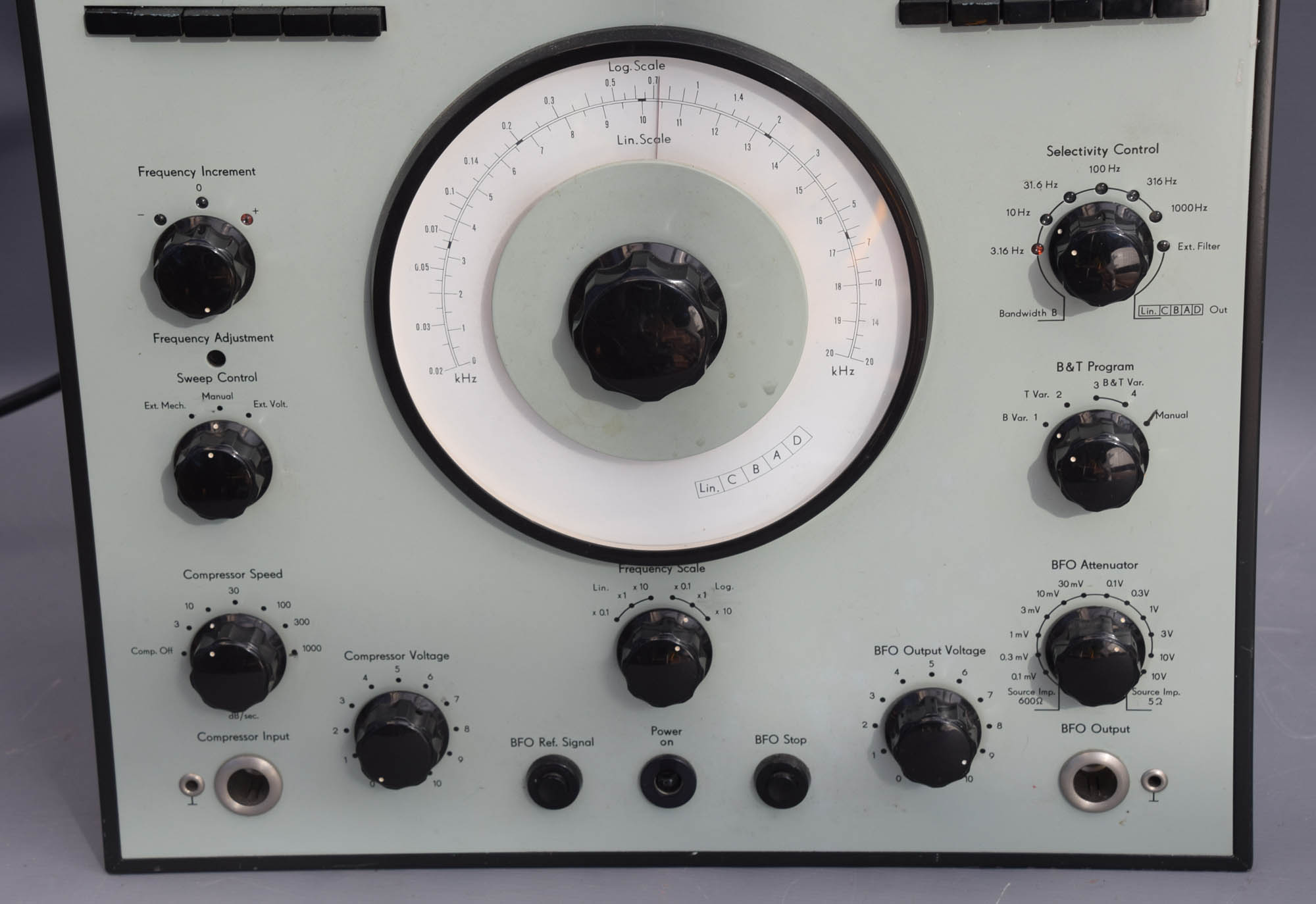

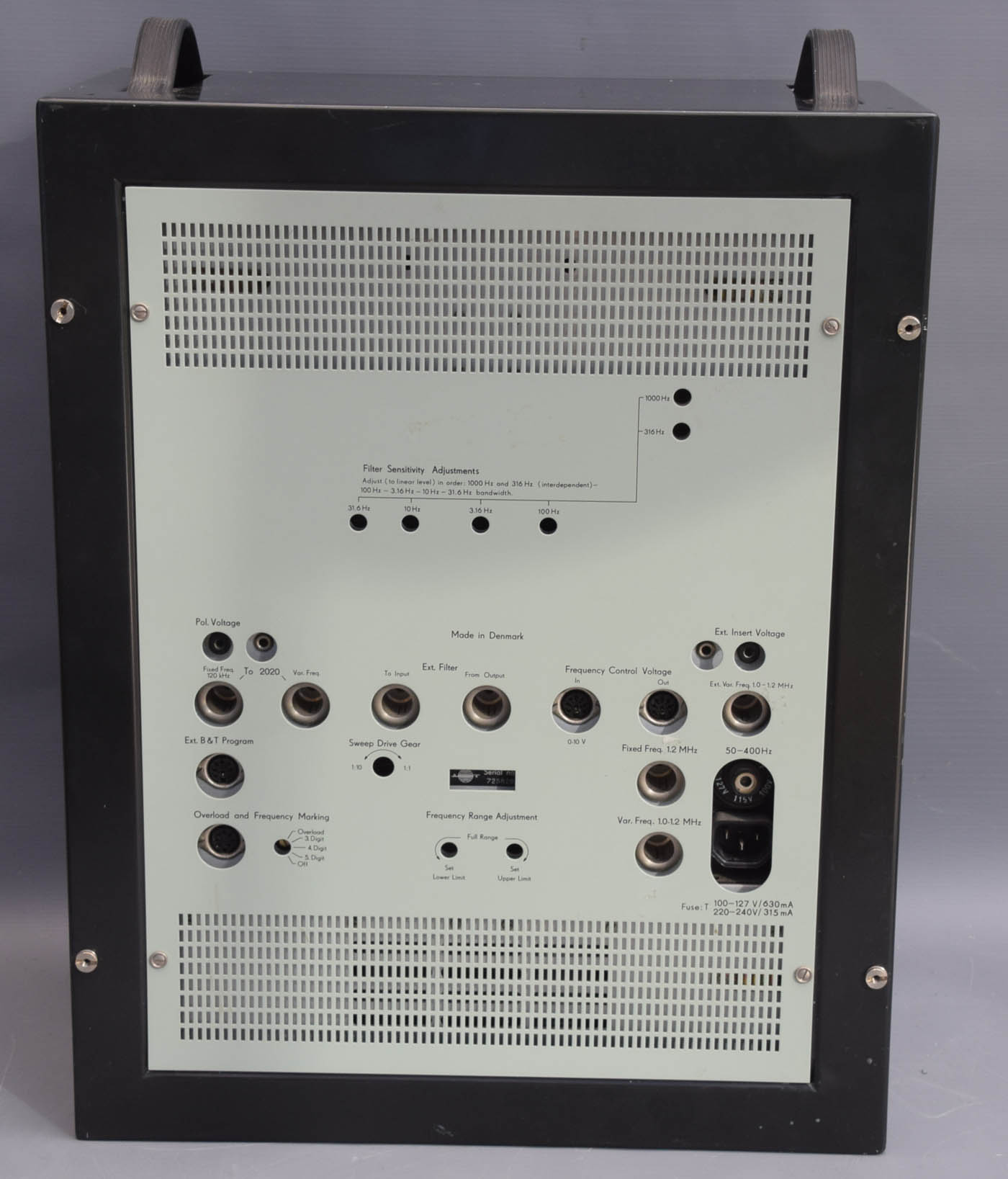

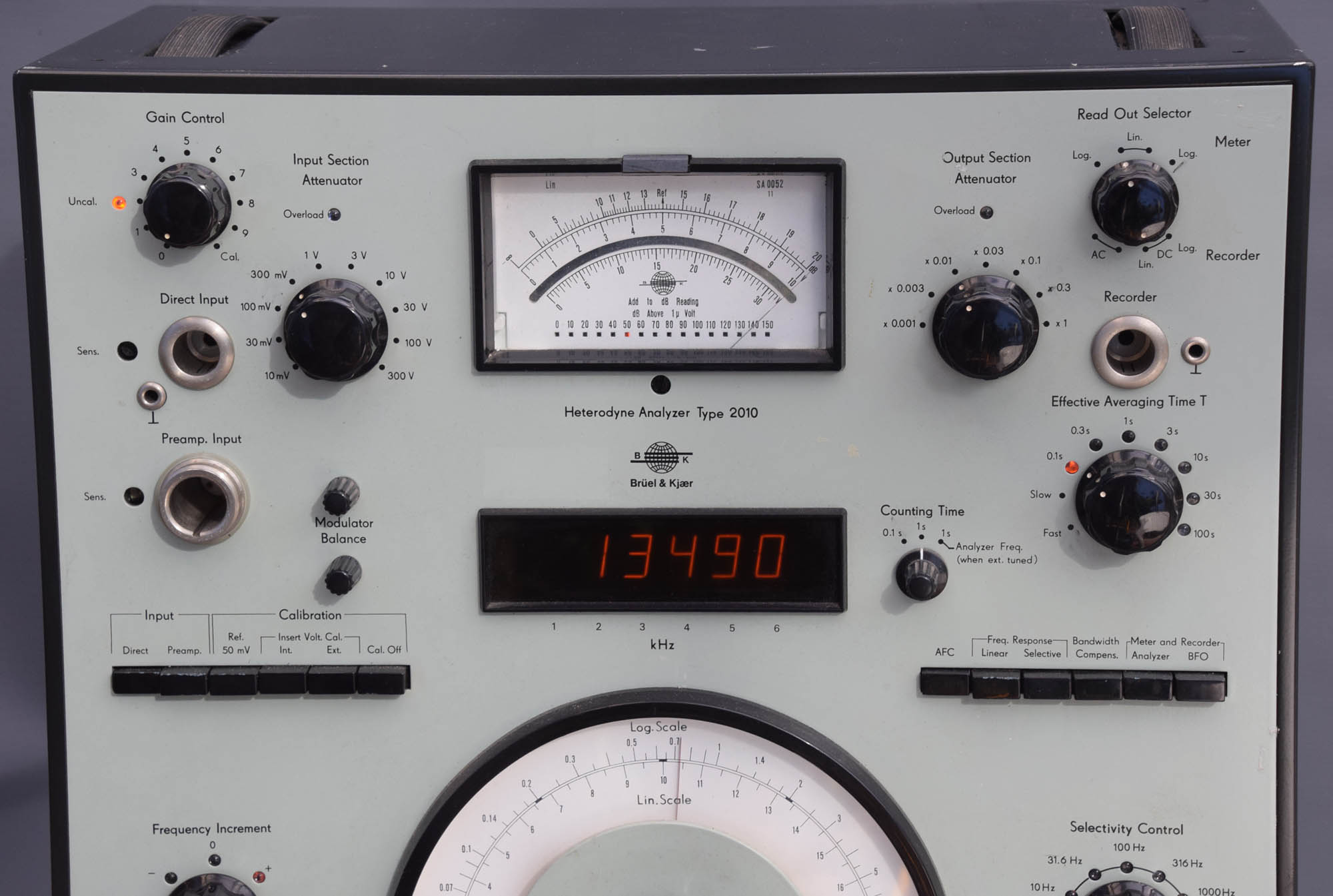

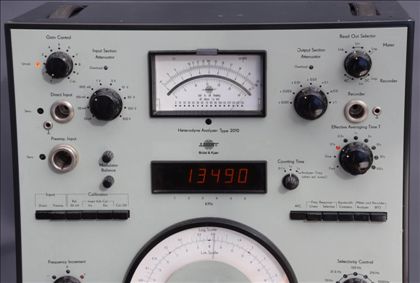

 Description Bruel & Kjaer 2010 Heterodyne Analyzer Cosmetically it is in lovely condition - definitely 8/10 and probably 9/10. A few little remnants of masking tape, a few marks which would probably come off with a thorough clean, but generally beautiful. This might well be the best-specified and most fully loaded unit ever made by Bruel & Kjaer. Its frequency range is 2Hz to 200kHz, tuning can be voltage controlled, the dynamic range is greater than 85dB, it has a built-in Beat Frequency Oscillator as well as extraordinarily powerful band-pass filtering going from band-pass width of 1000Hz down to one of 3.16Hz - making the precise picking out of harmonics a piece of cake - and has a six-digit clear numeric frequency readout. It also has a well-specified compressor for automatic control Although it is still housed in the unmistakable, gorgeous large cabinet B&K are famous for, it is transistor, not valve, and incidentally has an IEC mains socket, not the difficult-to-find earlier socket. Because of the move to transistors, there is room for such an incredible array of tools in one case - and also because the heat build-up is a lot less, the internal components are shielded with an extra metal case for improved resilience against external hum and noise sources. Of course this was originally designed for top-quality precision analysis of speakers, motors, etc. - but even from early on, people like Stockhausen and the Radiophonic Workshop were using B&K gear to make music. We have no idea how well calibrated this is, and haven’t checked things like the microphone inputs - specialised 7-pin B&K sockets with the necessary power connections - or the worm-drives for mechanical control of external equipment. But everything we did test seemed to be useful musically. The Oscillator output pot needs cleaning, and the last figure of the readout tends to vacillate between two digits. A copy of the 10 page Bruel & Kjaer detailed spec sheet will be included. For music purposes, 4mm banana plugs are fine in the elaborate B&K sockets. Switchable 100 - 240V, IEC lead. Weight 22kg, size 480 x 380 x 200mm. Packing 12GBP.
 Age n/a
 Weight 22 kg
 Condition Very good
 Location Uk (Item is at Vemia Uk)
 Vat Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc.
 Quantity 1 item is available from the owner
 Options User manual : No
  Service manual : No
  First owner : No
  Original boxes : No
 Plug type United Kingdom standard plug
 Voltage type Internal 110 to 220-240V switchable
 Status Item has been sold or not sold in a previous auction
 Sale type The item is on the auction rooms
 Ending on 11/04/2015
 Category Lab gear
 Serial number Unknown
 Sphere reference # 13249
 Statistics Created on : 13/03/2015
Changed on : (Not updated)
  Published on : 21/03/2015
  Displayed : 6971 time(s) by members and guests
Safety All electrical items sold in VEMIA are deemed to be trade sales. No warranty of electrical safety is given or implied. Many items are vintage and would not pass current electrical safety standards. It is the responsibility of the buyer to ensure that items are safe to use in their future environment - if necessary by using the services of a professional.


Prices and conditions    top
The following section gives you the prices as well as shipment and payment conditions associated with the item. Payment is always requested in GBP. Converted price is shown for information and converted with Sphere standard currency rate.

Shipment and Payment links gives you access to an extended description of our rating :
 Start price 190 GBP
 Converted price (1) 190 GBP
 Shipment International or local shipment to pay
 Packing costs 12 GBP
 Payment Full pre payment needed
 Auction bid step 20 GBP
 Auction highest bid 407 GBP
 Converted highest bid 407 GBP
 Leader or winner permeke
 (1) Currency conversion Note that conversion rates were last adjusted on 5th October 2022 at 10:56 CET. They are there to give you a rough guide to the bid price in your currency. Please check for a more up-to-date conversion at The bid price will be the actual price in pounds (GBP) at the moment the auction closes. This will be roughly converted to your currency for your information.

For technical reasons, we are unable to update the conversion from GBP to Euro during the auction, although it has changed by well over 10%. If you are in the euro zone please check the current rate at

Payments from UK and non-Euro currency regions must always be in GBP. Payments to and from Euro currency regions can be in Euros via our French bank.The applicable Euro amount will be the exact amount specified on your invoice or credit note. For more info please see the FAQ about exchange rates.
