| Make |
Moog |
| Model |
IIIc - nearly all R.A. Moog classic |
| Description |
The Moog IIIc has been with the current Owner since 1999 having been purchased from Martin Newcomb's Synthesiser Museum outside London. This IIIc contains the early 901B Oscillators and not the later 920 range.

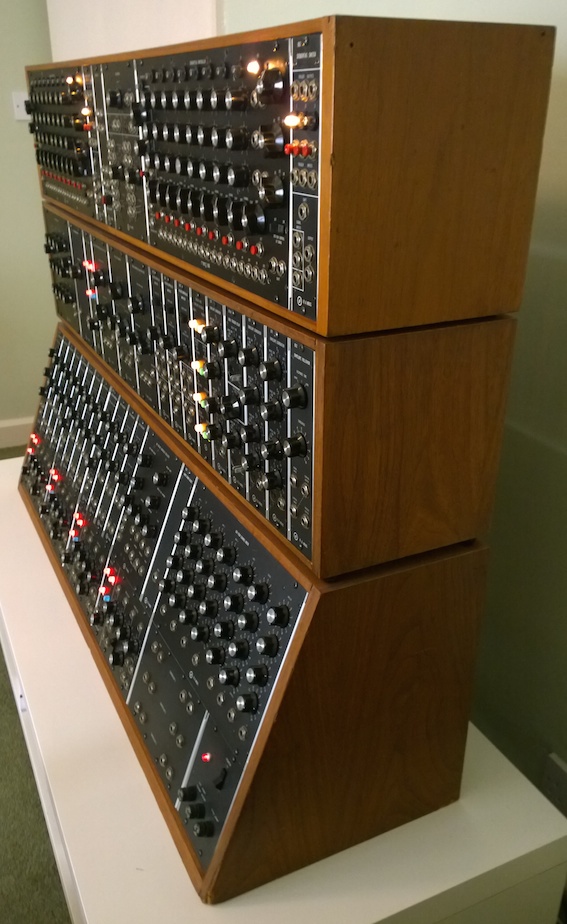

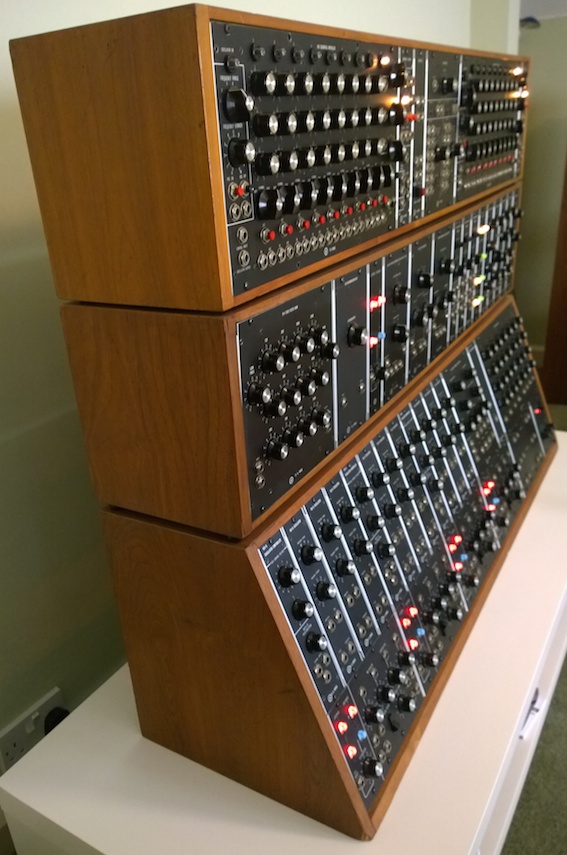

The IIIC is in pretty good condition for its age as can be seen in the photographs. The corners of the bottom of the Lower cabinet have been scuffed but otherwise the cabinets are in good condition (and very heavy).

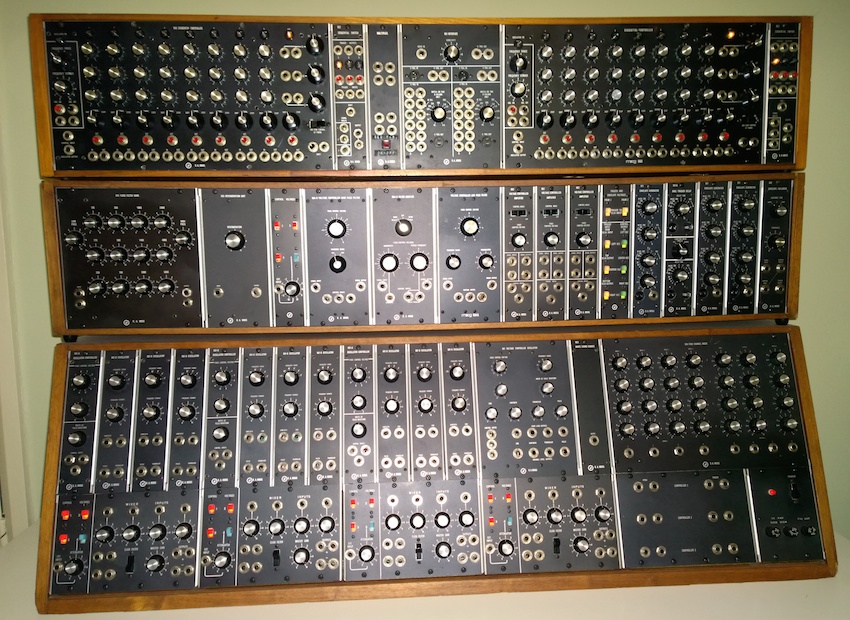

The modules in the Cabinets are:
Top Cabinet:
2 x 690 Sequential Controllers
2 x 962 Sequential Switches
1 multiple
1 961 Interface

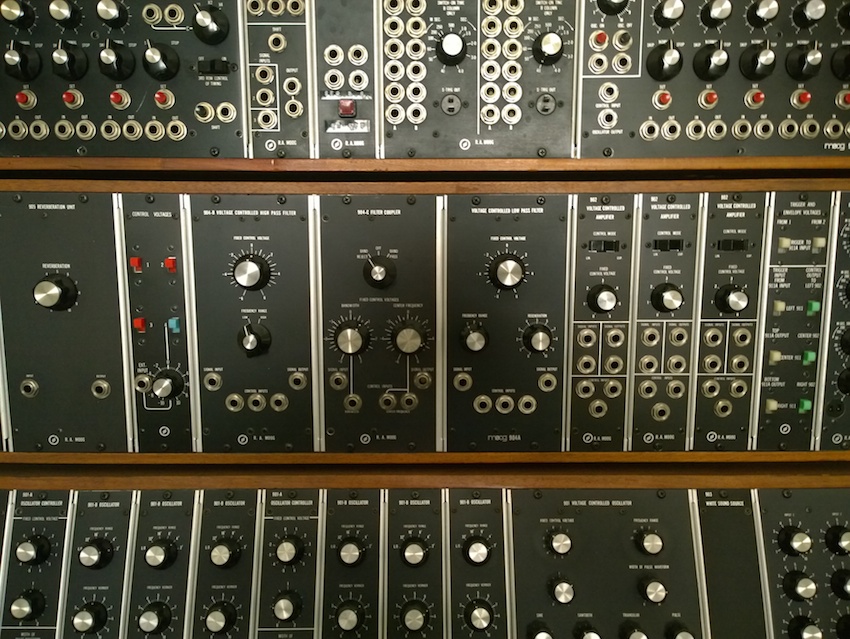

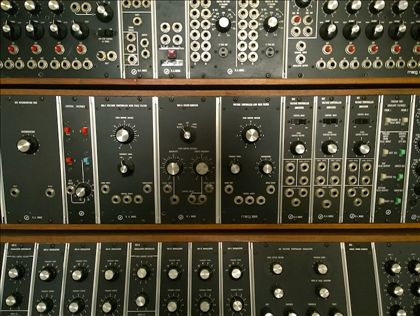

Middle Cabinet:
1 x 914 Fixed Filter Bank
1 x 905 Reverb Unit
1 x Control Voltage Switches (all switches illuminate)
1 x 904B Voltage controlled High Pass Filter
1 x 904C Filter Coupler
1 x 904A Voltage Controlled Low Pass Filter
3x 902 Voltage Controlled Amplifiers
1 x Trigger and Envelope Voltages (all switches illuminate)
3 x 911 Envelope Generators
1x 911A Dual Trigger Delay
1 x 912 Envelope Follower
Lower Cabinet:
3 repeated groups of:
1 x Input control sector switches (all switches illuminate)
1 x 901A Oscillator Controller
3 x 901B Oscillators
1 x Submixer
1 group:
1 x 901 Voltage Controlled Oscillator
1 x submixer
1x 903 White Noise Source
1 x Pitch and Trigger Multiple
1 x 984 Four Channel Mixer
1 x Power and fuse Panel
Additionally there is:

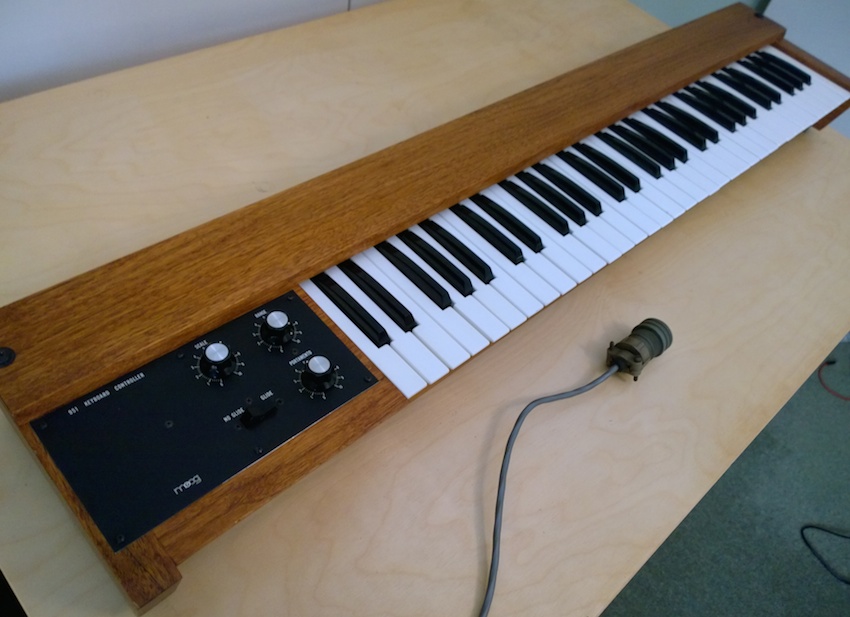

1 x 951 Keyboard Controller
1 x Copy of an original Moog Modular Owners Manual (seller does not own the original manual)
Additional Information:
All Modules are labelled RA MOOG with the exception of 1 of the 960 Sequential Controllers and the 904A Low Pass Filter which are labelled Moog.
The Moog was serviced about 2 years ago by James Walker at Synth Repair. ***UPDATE: when the owner checked with James, it was a lot longer than that - time does move on by. That's the bad news... the good news is that a.) it is still working great, but anyway b.) the owner has taken it to James Walker for a final check prior to being sold.***
Moog (in the USA) updated some control components in the 901A Oscillator Controllers (not the Oscillators themselves) so that the 901A Oscillators can now tune to scale across the full 5 Octaves. This modification does not of course alter the Oscillator tone. James Walker then replicated this modification to the other 2 x 901A Oscillator Controllers. Prior to this update the Synthesiser only accurately scaled across a single Octave.
It is 110V but I will include the two 240V to 110V step down transformer power supplies that I have for it for in in the description (one for the top cabinet with the 960 sequences and the other that drives cabinets one and two which are interlinked so only need one supply source).
**Also included: two Cinch-Jones leads which look original, and some modern patch leads.**
Many of the labels on the modules are no longer attached. The ones that are visible have the following werial numbers / dates:-
912 - S/n 1071
911 - 1159
902 - 157-11-69 (11525)
903 - 1076
910 - 1092
On the top cabinet
910 - 18-12-73
960 - 11-12-73
960 - 03-19-75
962 - 31-10-73
VEMIA should be able to arrange collection and delivery by hand to large areas of North-Western Europe - or if necessary packing / crating for shipping further afield. |
|
| Age |
n/a |
| Weight |
n/a |
| Condition |
Very good |
| Location |
Uk |
| Vat |
Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc. |
| Quantity |
1 item is available from the owner |
| Options |
User manual : Yes |
| |
Service manual : No |
| |
First owner : No |
| |
Original boxes : No |
| Plug type |
United Kingdom standard plug |
| Voltage type |
Internal 110V power supply |
| Status |
Item has been sold or not sold in a previous auction |
| Sale type |
The item is on the auction rooms |
| Ending on |
08/11/2014 |
| Category |
Synthesizer (Modular) |
| Serial number |
Unknown |
| Sphere reference |
# 13001 |
| Statistics |
Created on : 30/10/2014 |
 |
Changed on : 07/11/2014 |
| |
Published on : 07/11/2014 |
| |
Displayed : 3698 time(s) by members and guests |
| Safety |
All electrical items sold in VEMIA are deemed to be trade sales. No warranty of electrical safety is given or implied. Many items are vintage and would not pass current electrical safety standards. It is the responsibility of the buyer to ensure that items are safe to use in their future environment - if necessary by using the services of a professional. |
