If any word is underlined, you can click on to get more detail. Click on the photo to enlarge it and see more photos if available.
| Make |
Roland |
| Model |
PH-830 Stereo Phase Shifter |
| Description |
classic 70s high end phaser.
excellent condition - fully working.
[VEMIA note: if we collect & deliver / pack - at cost - we can include a US mains lead]
Roland's PH-830 stereo analog phase shifter was part of their late 1970s 'Roland Studio System' (RSS), consisting of several hefty rackmount devices, including the classic RV-800 spring reverb and two very large graphic equalizers. All were equipped with chunky metal rack handles, a bulletproof front panel, big toggle switches, multiple front and rear panel inputs and outputs, and excellent specs. It is not often found on the used market.

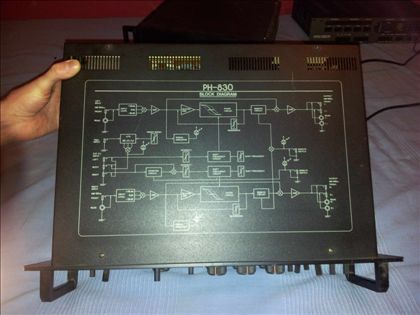

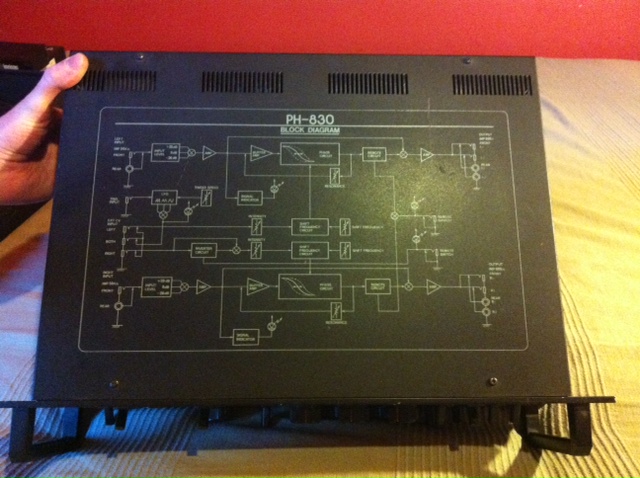

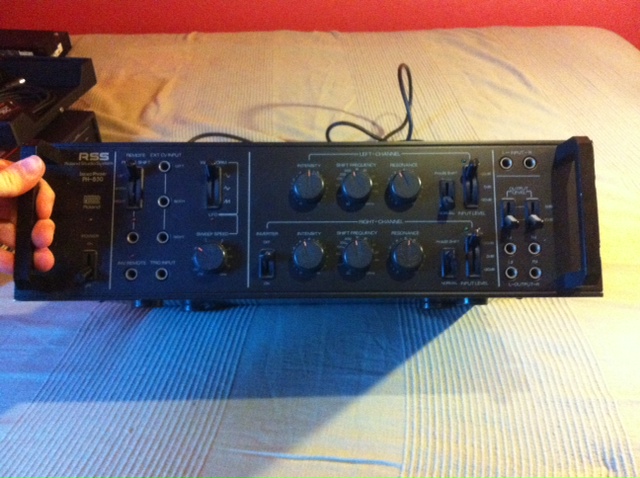

Although perhaps not as quirky or bizarre as some phasers, the PH-830 might in some ways be considered an analog 'reference phaser,' with a classic phasing tone, very low distortion and silky smooth sweeps, even at extreme settings. The stereo signal path consists of two eight stage phase shifters in parallel, with independent inputs, outputs, and CV inputs. Each channel has controls for intensity (LFO depth), shift frequency (30 Hz - 10 kHz), and resonance (feedback). If the intensity controls are set to 0, the shift frequency controls can be used to manually set the phase shift for each channel. |
|
| Age |
35 year |
| Weight |
8 kg |
| Condition |
Near mint |
| Location |
Uk |
| Vat |
Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc. |
| Quantity |
1 item is available from the owner |
| Options |
User manual : No |
| |
Service manual : No |
| |
First owner : No |
| |
Original boxes : No |
| Plug type |
Usa standard plug |
| Voltage type |
Internal 110V power supply |
| Status |
Item has been sold or not sold in a previous auction |
| Sale type |
The item is on the auction rooms |
| Ending on |
09/11/2013 |
| Category |
|
| Serial number |
860300 |
| Sphere reference |
# 10652 |
| Statistics |
Created on : 26/03/2013 |
|
Changed on : 02/11/2013 |
| |
Published on : 02/11/2013 |
| |
Displayed : 1361 time(s) by members and guests |
| Safety |
All electrical items sold in VEMIA are deemed to be trade sales. No warranty of electrical safety is given or implied. Many items are vintage and would not pass current electrical safety standards. It is the responsibility of the buyer to ensure that items are safe to use in their future environment - if necessary by using the services of a professional. |
|
|
|
|
|
|
|
|
|
